Markforged X7 Industrial 3D Printer

Request a Quote Request More Info

 Call EXBuild 877-220-8050

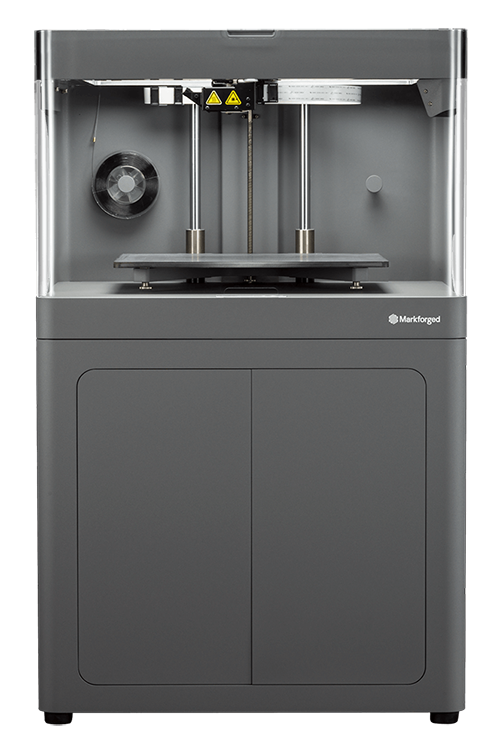

Industrial Series: The X7

The Industrial 3D Printer for Parts Reinforced with Carbon Fiber, Kevlar or Fiberglass

This industrial 3D printer was built for reliable performance, best-in-class quality and laser precision. The X7 takes the industrial 3D printers to the next level by introducing additional reinforcement fibers for highly durable and versatile parts that are stronger and lighter than aluminum.

The Markforged industrial grade large-format printers are the go-to for manufacturing engineering, delivering exceptional accuracy, reliability and repeatability. The X7 can withstand the toughest applications and can be ready the same day thanks to Turbo Print mode, an X7 exclusive feature.

Printer Specifications:

  • Adaptive Laser Bed Leveling
  • In-Process Laser Inspection
  • Turbo Print Mode
  • Build Volume: 13 x 9.8 x 7.9 in
  • Print Resolutions: 50, 100, 125, 200 and 250 Microns
  • Base Thermoplastic Materials: Onyx, Onyx FR, Nylon White
  • Internal Fiber Reinforcement: Fiberglass, HSHT Fiberglass, Carbon Fiber, Kevlar

Optional:

Learn more about the Markforged Industrial Series and composite 3D printing in our comprehensive online guide.

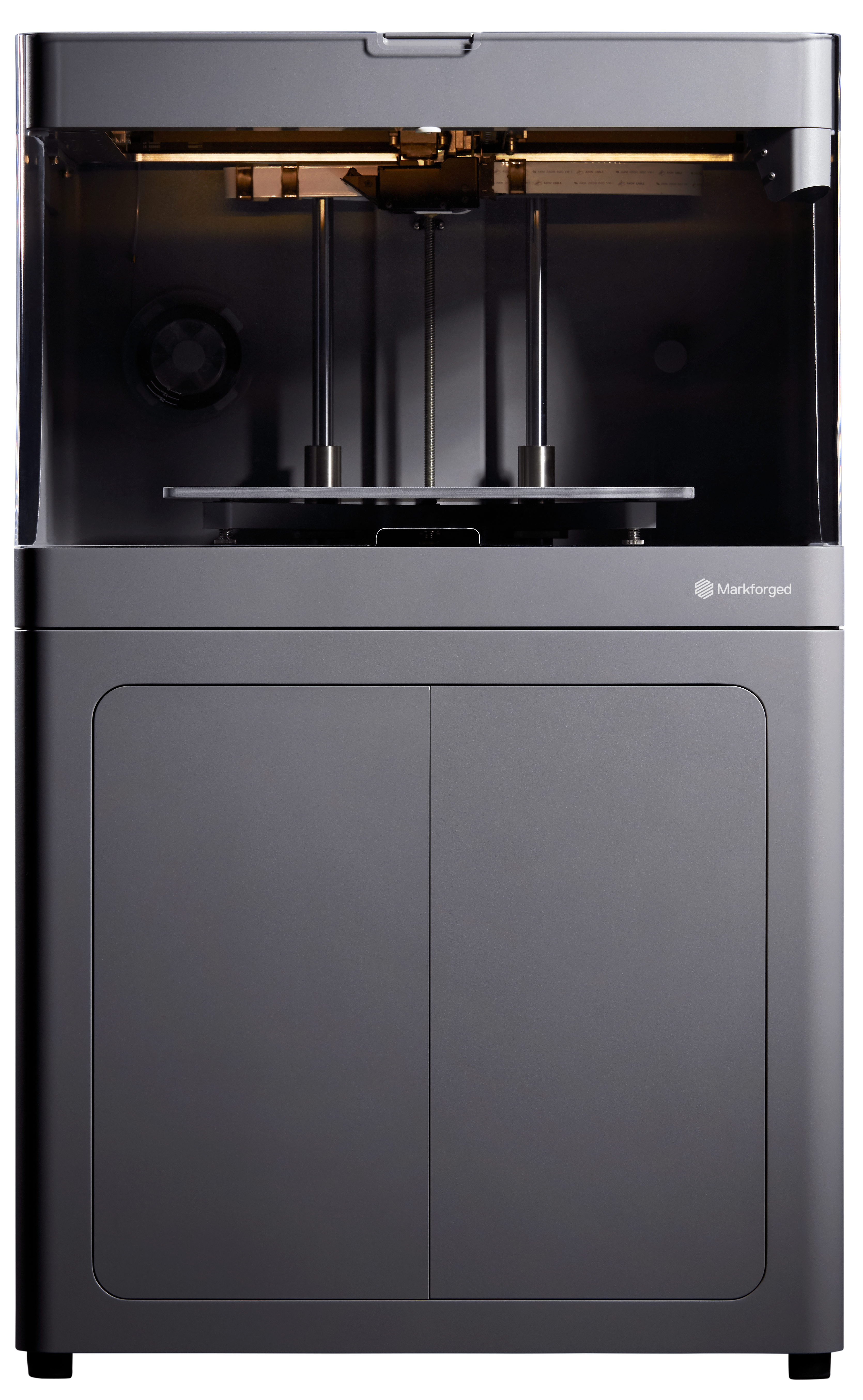

Markforged-X7-NewLogo

Key Features of the X7 Industrial 3D Printer

cff-process

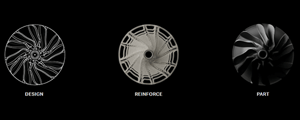

Continuous Filament Fabrication

The X7 uses CFF 3D printing technology which uses two print nozzles to create composite parts, combining two materials into a single print. This unique process reinforces your parts with continuous fiber during the printing process, enabling you to have parts that are stronger, stiffer and more versatile than typical 3D printed plastic parts.

outperform-aluminum

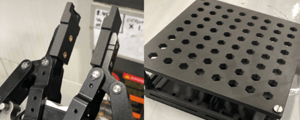

Outperform Aluminum

Composite parts printed on this industrial 3D printer with CFF technology are both stronger and lighter than aluminum. They stand up to the toughest applications, including uses in manufacturing equipment, jaws, tooling and end-use parts.

Eiger-Software

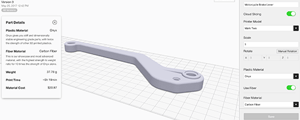

Eiger Software & Ease of Use

Markforged developed its Eiger software to make 3D printing simple. Easily import, manipulate and slice your 3D models directly in a web browser with this cloud-based software that comes with every printer. Printers from Markforged also have built-in touchscreens to help you connect to Wi-Fi, start parts and manage your printer with ease.

turbo-print

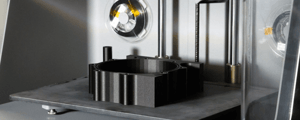

50x Faster, 20x Cheaper

The work-ready, composite parts printed on the X7 are ready at a fraction of the cost compared to traditional fabrication methods. With Turbo Print — the ultra-fast print mode available only on the Markforged X7 — your parts can be ready the same day.
