The BigRep IPSO 105

Maximum Performance. Unbeatable Price

The IPSO 105 is an industry all-rounder high-temp machine at an unbeatable price-to-performance ratio. It is the most automated, reliable and fastest way to get robust, high-performance parts in the hands of industrial engineers and designers.

Aptly called the tool maker's tool, it is a blazing hot machine of 105 liters reaching 100°C with a print bed heating up to 180°C. It is built with state-of-the-art duel extruders capable of printing high-performance material with open access to the world's most advanced materials, including PC, PEKK and PEKK-CF

Printer Specifications:

  • Fused-Filament-Fabrication (FFF/FDM)
  • Dual Direct Synchronized Extruders (DSX)
  • Build Volume: 400mm x 600mm x 440mm (x,y,z)
  • Layer Heights: From 0.05mm
  • Compatible Materials: ABS, ABS-ESD, ABS-FR, ASA, HT-PETG, PA6, PA6-CF, PA12, PA12-CF, PC, PC-ABS, PC-FR, PC-CF, PCTG, PEEK, PEKK, PEKK-CF, PETG, PLA, PP, PP-GF, PPS, PPSU, TPU, TPC

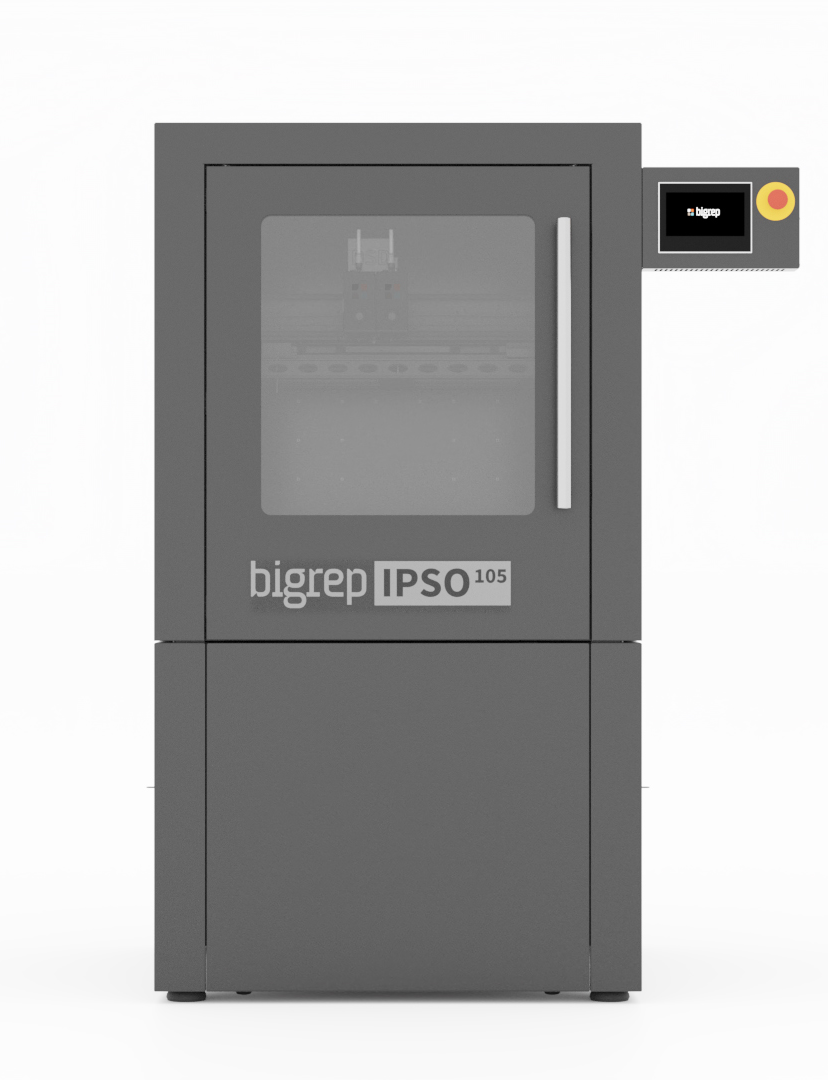

BigRep_IPSO 105_Front_4_wLogo

Key Features of the BigRep IPSO 105 Industrial 3D Printer

Bigrep IPSO 105Website Image 1

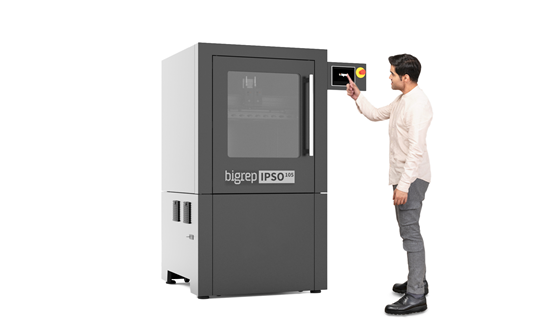

Full-Scale 3D Printing

With a build volume of 105 liters, IPSO hits a sweet spot between a desktop and a large-scale 3D printer, perfect for many tooling applications. Thanks to it's made-to-last industrial components and stepper motors with encoders, IPSO 105 achieves the accuracy and repeatability you expect in an industrial machine.

Bigrep IPSO 105Website Image 2

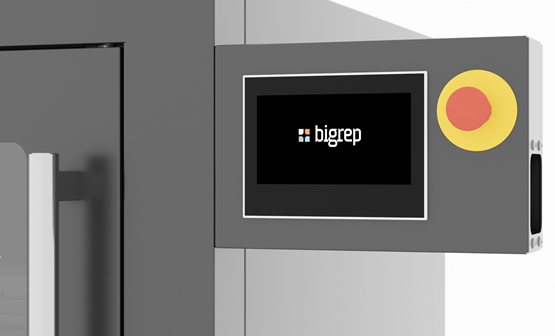

Fully Automated Quick Start

Getting started is quick and easy thanks to automatic functions like bed calibration, topology measurement and corresponding automatic compensation. After a smooth start, built-in sensors will secure your 24/7 operation while the camera enables real-time remote monitoring so you won't miss a thing.


Bigrep IPSO 105Website Image 3

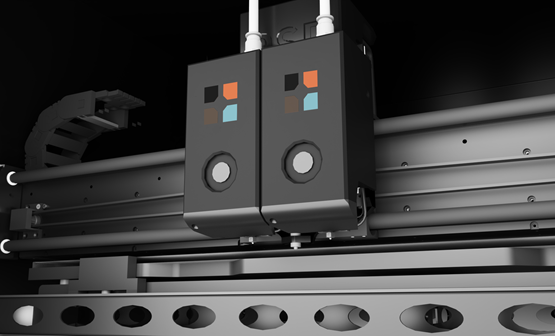

Reliable Duel DSX Extruders

The IPSO 105 features dual DSX extruders, each with integrated cooling channels and multiple sensors for monitoring and control. When filament runs out the Relay Mode kicks in and the second extruder seamlessly takes over. The DSX is particularly good with soft, flexible material and it's optimized feeding mechanism.

Bigrep IPSO 105Website Image 4

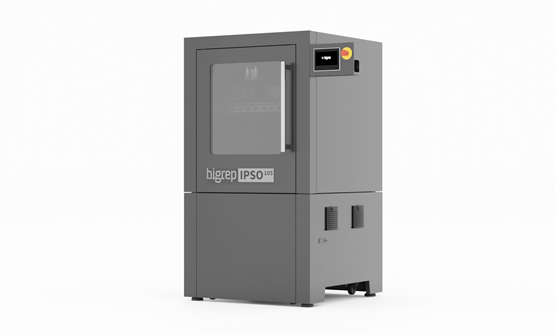

Even Temperature Distribution

Consistent temperature is key for excellent prints and a requirement for high-performance parts. Reaching temperatures up to 180°C, the print bed and build chamber both maintain uniform heat distribution. The airflow control precisely tempers the prints resulting in enhanced and consistent mechanical properties.
