BigRep ALTRA 280 Industrial 3D Printer

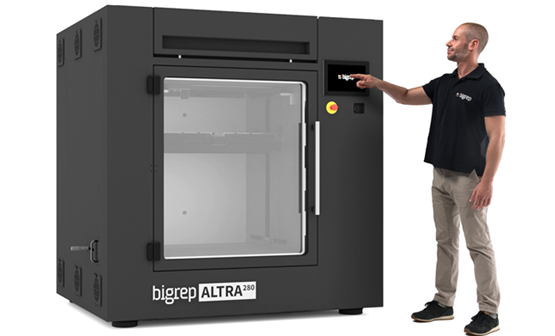

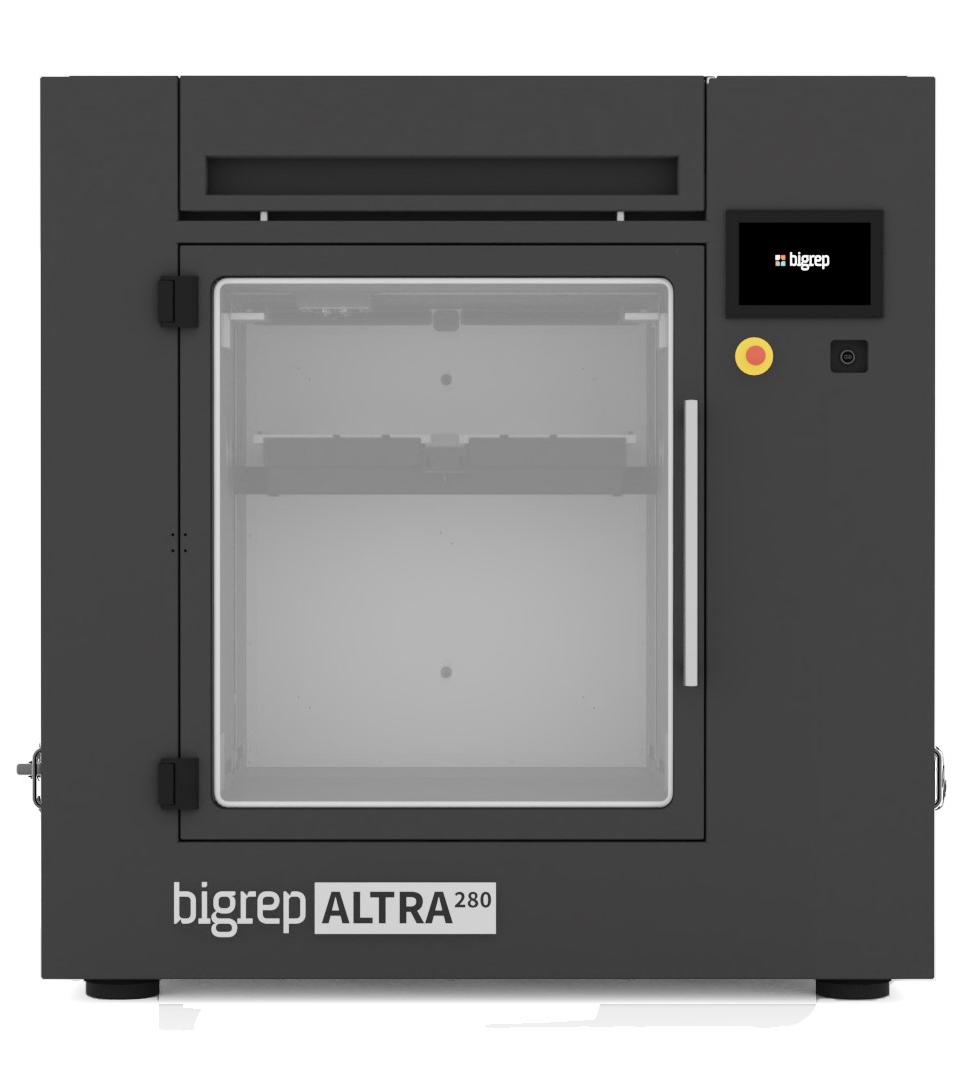

The BigRep ALTRA 280

The Ultimate High-Performance Machine.

The ALTRA 280 is a high-performance industrial powerhouse with an expansive build volume. It delivers unrivaled reliability with up to 4 state-of-the-art extruders. These controlled duel extruders with their respective backups are groundbreaking in additive manufacturing, delivering flawless prints every time. The high-temperature capabilities enable peak-level 3D printing for demanding applications from aerospace to defense to automotive industries.

The ALTRA 280 is everything at once: a large, fast, reliable, high-temp industrial machine. Delivering complex production-quality parts without compromise.

Printer Specifications:

Fused-Filament-Fabrication (FFF/FDM)

Up to 4 Direct Synchronized Extruders (DSX)

Build Volume: 500mm x 700mm x 800mm (x,y,z)

Layer Heights: From 0.05mm

Compatible Materials: ABS, ABS-ESD, ABS-FR, ASA, HT-PETG, PA6, PA6-CF, PA12, PA12-CF, PC, PC-ABS, PC-FR, PC-CF, PCTG, PEEK, PEKK, PEKK-CF, PETG, PLA, PP, PP-GF, PPS, PPSU, TPU, TPC, ULTEM 9085

Accuracy in Large Scale

With a build volume of 280 liters, the ALTRA produces intricate full-fledged prototypes, production and end-use parts. Thanks to the welded frame, ball screws and servo motors like those found in CNC technology, ALTRA 280 achieves the accuracy and repeatability you expect in an industrial machine.

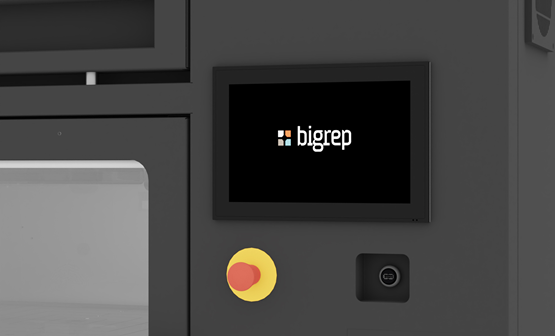

Fully Automated Quick Start

Getting started is quick and easy thanks to automatic functions like bed calibration, topology measurement and corresponding automatic compensation. After a smooth start, built-in sensors will secure your 24/7 operation while the camera enables real-time remote monitoring so you won't miss a thing.

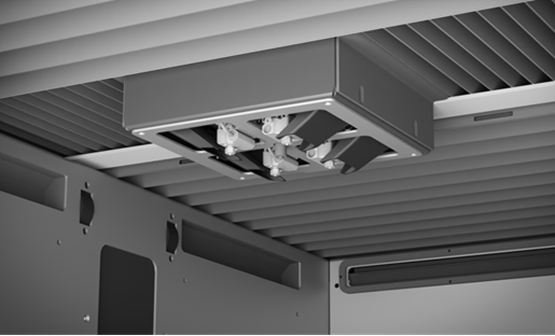

Up to 4 DSX Extruders

The ALTRA 280 is equipped with up to 4 DSX capable of printing at 450°C up to 20kg in one cycle. Achieve complex prints with dual extruders and ensure seamless production with two respective backup extruders. Each DSX is a masterpiece, with integrated cooling channels and multiple sensors for monitoring control.

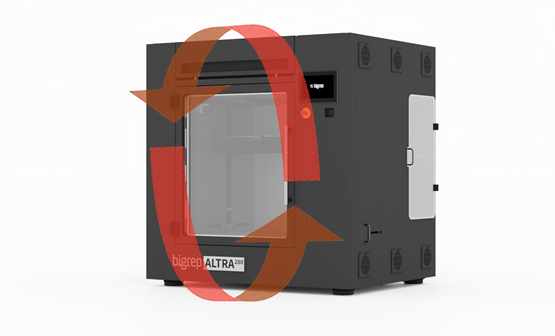

Even Temperature Distribution

Consistent temperature is key for excellent prints and a requirement for high-performance parts. Reaching temperatures up to 180°C, the print bed and build chamber both maintain uniform heat distribution. The airflow control precisely tempers the prints resulting in enhanced and consistent mechanical properties.
